10007707 | Fischer Elektronik
Insulating hose cut to size, 1.22 W/mK, silicone, 10007707
Unit Price (€ / pc.)
0.7616 € *
Available: 200 pcs.
Leadtime: On Request **
Total Price:
0.76 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7616 €
10 pcs.
0.7140 €
50 pcs.
0.6426 €
100 pcs.
0.5831 €
*incl. VAT plus shipping costs
**Subject to prior sale

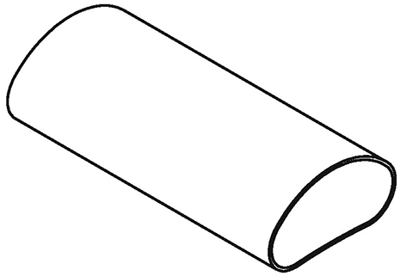

Heat transfer foils as insulation tubing sections for semiconductor packages, type Fischer WSC.
Made of silicon elastomer to UL 94 V-0 Length: 25 mm. Material thickness: 0.3 mm. Material hardness: 75 Shore A. Thermal resistance: 0.4 K/W. Elongation: 100 %. Dielectric strength: 10 kV. Operating temperatures: –60 to +180 °C.
Technical attributes (type, for package type): WSC–3 P, TO 3 PF
Technical specifications
| Thickness | 0.3 mm | |
| Material | silicone | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Thermal conductivity | 1.22 W/mK | |
| Thermal resistense | 0.4 K/W |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85462000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
