1 0239 202 014 | Flexa

Plastic braided sleeve, range 7-14 mm, black, halogen free, -50 to 150 °C, 1 0239 202 014

Order No.: 91F4141
EAN: 4025113186973
MPN:
1 0239 202 014
0239.202.014
Series: HG-PA
Flexa

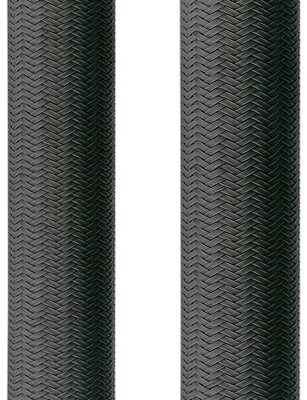

1 0239 202 014 Flexa Braided Sleeving
Image may differ
Unit Price (€ / mtr.)
2.3443 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Total Price:
2.34 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
2.3443 €

Braided sleeve, 1 0239 202 014, Flexa

Braid consisting of round braided monofiles with double crossed looping at the different braiding angles.

Features

  • Easy pulling in of cables
  • The braiding becomes tight by stretching
  • Oil and benzine resistant
  • Widely resistent to solvents and acids
  • Free of halogen
  • Self-extinguishing
  • Flame-resistant

Applications

  • Cable bundling
  • Machine and plant constructions
  • Automotive
  • Railway industry
  • Shipbuilding
  • Automation
  • Electrical installations
Technical specifications
Version plastic braided sleeve
Application range 7-14 mm
Colour black
Halogen free Yes
Material PA
max. operating temperature 150 °C
min. operating temperature -50 °C
Optical Coverage 85 %
Logistics
Country of origin DE
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
