1 0239 602 025 | Flexa
Plastic braided sleeve, inner Ø 15 mm, range 13-25 mm, black, halogen free, -50 to 175 °C, 1 0239 602 025
Unit Price (€ / mtr.)
1.8921 € *
Available: 0 mtr.
Leadtime: 2 Weeks **

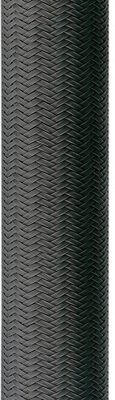

Braid sleeving, 1 0239 602 025, Flexa
Wire braiding consisting of round braided monofiles with double-crossed looping at the different braiding angles.
Features
- Easy pulling in of cables even in case of long distances
- Resistant to abrasion
- Free of silicone, cadmium, halogen
- Resistance of fuel and mineral oils
- Self-extinguishing
- UV-resistant
Applications
- Cable bundling
- Machine and plant constructions
- Automotive
- Railway industry
- Shipbuilding
- Automation
- Electrical installations
Technical specifications
| Ausführung | Kunststoff-Geflechtschlauch | |
| Einsatzbereich | 13-25 mm | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Innendurchmesser | 15 mm | |
| Material | PET | |
| max. Temperatur | 175 °C | |
| min. Temperatur | -50 °C | |
| Optische Bedeckung | 85 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39173200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
