1 0239 602 030 | Flexa
Plastic braided sleeve, inner Ø 18 mm, range 15-30 mm, black, halogen free, -50 to 175 °C, 1 0239 602 030
Unit Price (€ / mtr.)
2.2848 € *
Available: 0 mtr.
Leadtime: 2 Weeks **

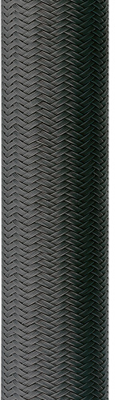

Braid sleeving, 1 0239 602 030, Flexa
Wire braiding consisting of round braided monofiles with double-crossed looping at the different braiding angles.
Features
- Easy pulling in of cables even in case of long distances
- Resistant to abrasion
- Free of silicone, cadmium, halogen
- Resistance of fuel and mineral oils
- Self-extinguishing
- UV-resistant
Applications
- Cable bundling
- Machine and plant constructions
- Automotive
- Railway industry
- Shipbuilding
- Automation
- Electrical installations
Technical specifications
| Version | plastic braided sleeve | |
| Application range | 15-30 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Inner diameter | 18 mm | |
| Material | PET | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -50 °C | |
| Optical Coverage | 85 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
