1 4050 101 008 | Flexa

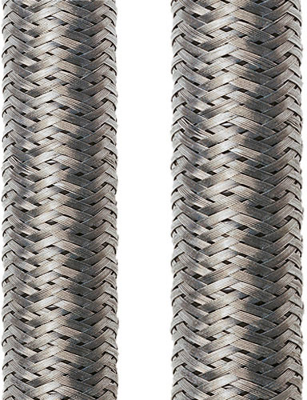

Metal braided sleeve, inner Ø 6 mm, range 5-12 mm, silver, -50 to 250 °C, 1 4050 101 008
Unit Price (€ / mtr.)
5.4264 € *
Available: 112 mtr.
Leadtime: 2 Weeks **
Total Price:
5.43 € *
Price list
Quantity
Price per unit*
1 mtr.
5.4264 €
10 mtr.
4.7719 €
100 mtr.
4.1769 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire braid tubing series HG-EDU, type Flexa 4050.101.
Ultra-flexible, made of galvanized steel wire, round, braided, with double cross-over in the braid angles. Sturdy and flexible protection for cables, tubing, tubular products, etc. Axial braiding, can be pushed together to enable insertion and then stretched to tighten it; Operating temperatures: up to +300 °C.
Technical attributes (type, nominal width (RW), application range (AR)): 4050.101.008, RW 6.0 mm, AR 5.0 to 12 mm
Technical specifications
| Version | Metall-Geflechtschlauch | |
| Inner diameter | 6 mm | |
| Application range | 5-12 mm | |
| Colour | silber | |
| Material | Stahl, verzinkt | |
| Halogen free | No | |
| Optical Coverage | >85 % | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 250 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 83071000 |
| Original Packaging | Rolle mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
