1 4050 701 008 | Flexa
Metal braided sleeve, range 5-12 mm, silver, -50 to 250 °C, 1 4050 701 008
Unit Price (€ / mtr.)
5.7715 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Braided sleeve, 1 4050 701 008, Flexa

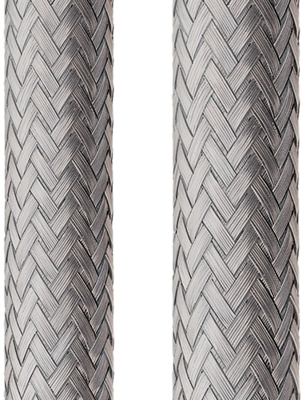

Wire braiding consisting of fine, round braided wires with double crossed looping at the different braiding angles.
Features
- Easy pulling in of cables
- The braiding becomes tight by stretching
- Protection from hot swarfs
- High shielding factor
Applications
- Cable bundling
- Machine and plant constructions
- Automotive
- Railway industry
- Shipbuilding
- Automation
- Electrical installations
- EMC applications
Technical specifications
| Ausführung | Metall-Geflechtschlauch | |
| Einsatzbereich | 5-12 mm | |
| Farbe | silber | |
| Halogenfrei | No | |
| Material | Kupfer, verzinnt | |
| max. Temperatur | 250 °C | |
| min. Temperatur | -50 °C | |
| Optische Bedeckung | 85 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 83079000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
