1 5010 023 050 | Flexa

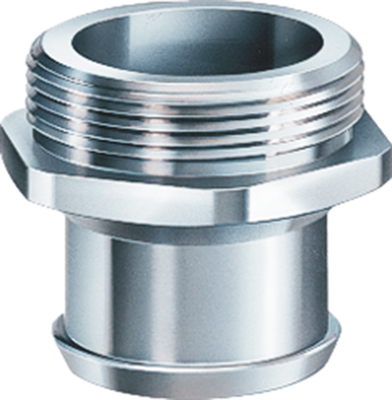

Conduit olive, (L x W) 48 x 60.2 mm, brass, nickel-plated, for protective hoses, 1 5010 023 050
Unit Price (€ / pc.)
36.8543 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
36.85 € *
Price list
Quantity
Price per unit*
1 pcs.
36.8543 €
5 pcs.
33.7841 €
10 pcs.
30.7020 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corresponding barbed fittings for conduit, series NIMS-M, type 5010.023.
With fixed connecting thread and hexagonal wrench faces, metric thread to EN 60423; Material: nickel-plated brass. Degree of protection: IP 64. Operating temperatures: –40 to +120 °C.

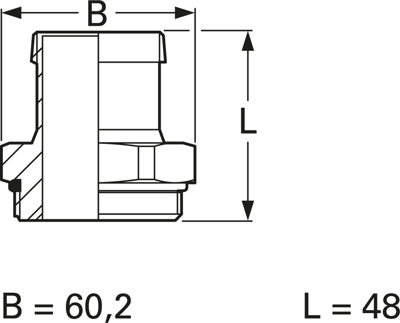

Technical attributes (type, connection thread, for tubing inner diameter, dimension B, dimension L): 5010.023.050, M 50 x 1.5, 40 mm, B 60.2, L 48 mm
Technical specifications
| Width | 60.2 mm | |
| Suitable for | protective hoses | |
| Length | 48 mm | |
| Material | brass, nickel-plated | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -40 °C | |
| Accessory Type | conduit olive |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74122000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
