1 5030 028 029 | Flexa

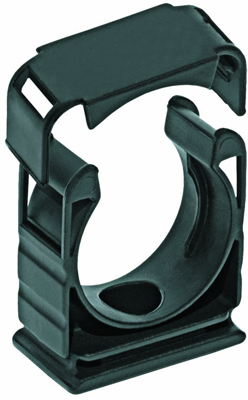

Tubing holders, (W x H) 40 x 44.4 mm, head Ø 34.5 mm, PA, black, for Hose mounting, 1 5030 028 029
Unit Price (€ / pc.)
3.1654 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
3.17 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1654 €
25 pcs.
2.9155 €
50 pcs.
2.7370 €
100 pcs.
2.5704 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corresponding conduit clamps with cover, series RQHG, type 5030.
Through-hole for screw mounting. With fin fixation for strain relief. In-line arrangement of different sizes. Suitable for use with C-profile rails; Material: reinforced polyamide (PA). Operating temperatures: –30 to +100 °C.

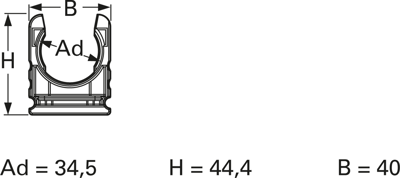

Technical attributes (type, conduit ou): 5030.028.029, OD 34.5, H 44.4, B 40 mm, gray
Technical specifications
| Width | 40 mm | |
| Colour | black | |
| Suitable for | Hose mounting | |
| Height | 44.4 mm | |
| Head Diameter | 34.5 mm | |
| Material | PA | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -30 °C | |
| Accessory Type | tubing holders |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
