1 5030 028 207 | Flexa

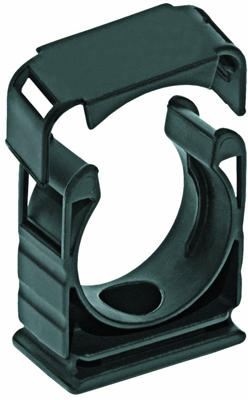

Tubing holders, (W x H) 19.5 x 19 mm, head Ø 10 mm, PA, black, for Hose mounting, 1 5030 028 207
Unit Price (€ / pc.)
1.5946 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
1.59 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5946 €
25 pcs.
1.4756 €
50 pcs.
1.3804 €
100 pcs.
1.2971 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corresponding conduit clamps with cover, series RQHG, type 5030.
Through-hole for screw mounting. With fin fixation for strain relief. In-line arrangement of different sizes. Suitable for use with C-profile rails; Material: reinforced polyamide (PA). Operating temperatures: –30 to +100 °C.

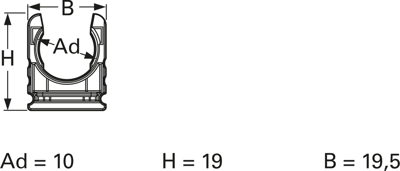

Technical attributes (type, conduit ou): 5030.028.207, OD 10, H 19, B 19.5 mm, black
Technical specifications
| Width | 19.5 mm | |
| Colour | black | |
| Suitable for | Hose mounting | |
| Height | 19 mm | |
| Head Diameter | 10 mm | |
| Material | PA | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -30 °C | |
| Accessory Type | tubing holders |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
