1 5020 055 016 | Flexa
Straight hose screw fitting, M16, 15.8 mm, PA, IP66, gray, (L) 39 mm, 1 5020 055 016
Unit Price (€ / pc.)
3.1297 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
3.13 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1297 €
25 pcs.
2.8679 €
50 pcs.
2.6061 €
100 pcs.
2.4276 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corresponding plastic quick-lock conduit fittings series RQG1-M and RQG1-P, type 5020.
With outer thread and faces for hexagonal wrench; Connecting thread: metric to EN 60423, or Pg to DIN 40430. Efficient mounting through one-piece screwed gland with push-in lock. Simple removal by sliding back the locking sleeve. Conical seal. Resistant against oil and gasoline. Free of halogen, silicon and cadmium. Material: polyamide (PA). Seal: TPE. Color: black or gray. Degree of protection: IP 66. Operating temperatures: –40 to +115 °C.
With metric thread, series RQG1-M, type 5020.

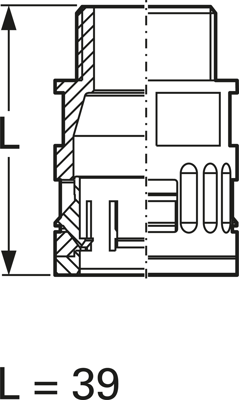

Technical attributes (type, connecting thread, conduit outer diameter (OD), dimension L, color): 5020.055.016, M 16 x 1.5, OD 15.8, L 39 mm, gray
Technical specifications
| Colour | gray | |
| Thread size | M16 | |
| Length | 39 mm | |
| Material | PA | |
| max. operating temperature | 115 °C | |
| min. operating temperature | -40 °C | |
| Nominal width | 15.8 mm | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
