1 5020 055 032 | Flexa
Straight hose screw fitting, M32, 34.5 mm, PA, IP66, gray, (L) 51 mm, 1 5020 055 032
Unit Price (€ / pc.)
7.2709 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
7.27 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2709 €
25 pcs.
6.6640 €
50 pcs.
6.0571 €
100 pcs.
5.6525 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corresponding plastic quick-lock conduit fittings series RQG1-M and RQG1-P, type 5020.
With outer thread and faces for hexagonal wrench; Connecting thread: metric to EN 60423, or Pg to DIN 40430. Efficient mounting through one-piece screwed gland with push-in lock. Simple removal by sliding back the locking sleeve. Conical seal. Resistant against oil and gasoline. Free of halogen, silicon and cadmium. Material: polyamide (PA). Seal: TPE. Color: black or gray. Degree of protection: IP 66. Operating temperatures: –40 to +115 °C.
With metric thread, series RQG1-M, type 5020.

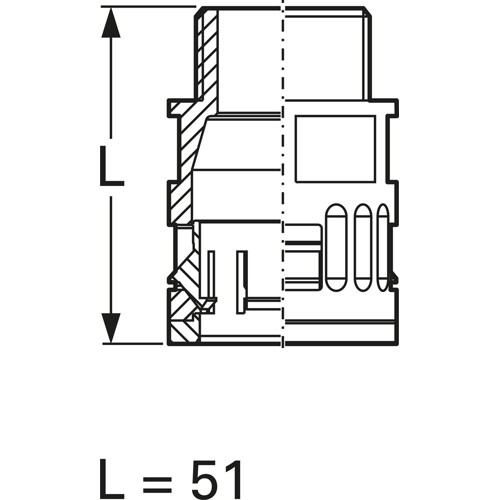

Technical attributes (type, connecting thread, conduit outer diameter (OD), dimension L, color): 5020.055.032, M 32 x 1.5, OD 34.5, L 51 mm, gray
Technical specifications
| Farbe | grau | |
| Gewindegröße | M32 | |
| Länge | 51 mm | |
| Material | PA | |
| max. Temperatur | 115 °C | |
| min. Temperatur | -40 °C | |
| Nennweite | 34.5 mm | |
| Schutzart (IP) | IP66 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39174000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
