1 5020 055 210 | Flexa
Straight hose screw fitting, M10, 10 mm, PA, IP66, black, (L) 34.5 mm, 1 5020 055 210
Unit Price (€ / pc.)
2.9988 € *
Available: 78 pcs.
Leadtime: 2 Weeks **
Total Price:
3.00 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9988 €
25 pcs.
2.7489 €
50 pcs.
2.4990 €
100 pcs.
2.3324 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corresponding plastic quick-lock conduit fittings series RQG1-M and RQG1-P, type 5020.
With outer thread and faces for hexagonal wrench; Connecting thread: metric to EN 60423, or Pg to DIN 40430. Efficient mounting through one-piece screwed gland with push-in lock. Simple removal by sliding back the locking sleeve. Conical seal. Resistant against oil and gasoline. Free of halogen, silicon and cadmium. Material: polyamide (PA). Seal: TPE. Color: black or gray. Degree of protection: IP 66. Operating temperatures: –40 to +115 °C.
With metric thread, series RQG1-M, type 5020.

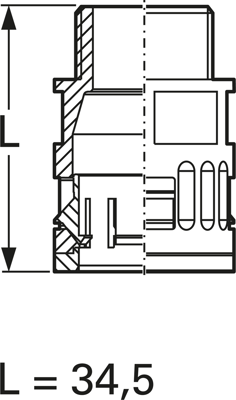

Technical attributes (type, connecting thread, conduit outer diameter (OD), dimension L, color): 5020.055.210, M 10 x 1.0, OD 10, L 34.5 mm, black
Technical specifications
| Farbe | schwarz | |
| Gewindegröße | M10 | |
| Länge | 34.5 mm | |
| Material | PA | |
| max. Temperatur | 115 °C | |
| min. Temperatur | -40 °C | |
| Nennweite | 10 mm | |
| Schutzart (IP) | IP66 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39174000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
