1 0207 202 070 | Flexa

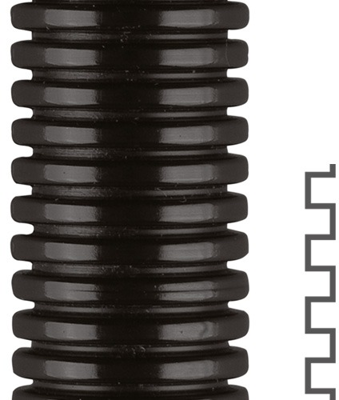

Corrugated hose, inside Ø 66.5 mm, outside Ø 79.2 mm, BR 170 mm, PA, black, 1 0207 202 070

Order No.: 91F3152
EAN: 4025113178961
MPN:
1 0207 202 070
0207.202.070
Flexa
1 0207 202 070 Flexa Protective Tubes Image 1
1 0207 202 070 Flexa Protective Tubes Image 2
Image may differ
Unit Price (€ / mtr.)
99.7101 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Total Price:
99.71 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 mtr.
99.7101 €

Corrugated tubing, 1 0207 202 070, FLEXA

Protective all-plastic tubing that is internally and externally corrugated with a fine profile as cable buncher for large quantity of cables.

Features

  • Non-crush
  • Air and liquid-tight
  • Flame retardant
  • Oil and benzine resistant
  • Widely resistant to acids and solvents
  • Especially suitable for applications with frequently reversed bending cycles

Applications

  • Machine and plant constructions
  • Automotive
  • Railway industry
  • Shipbuilding
  • Automation
  • Electrical installations
Technical specifications
Outer diameter 79.2 mm
Bending radius 170 mm
Colour black
Flame-retardant Yes
Inner diameter 66.5 mm
Material PA
max. operating temperature 130 °C
min. operating temperature -50 °C
Nominal width 70 mm
Degree of protection (IP) IP68/IP69K
Logistics
Country of origin DE
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
