1 0231 002 010 | Flexa
Corrugated hose, inside Ø 9.8 mm, outside Ø 13 mm, BR 20 mm, PP, black, 1 0231 002 010
Unit Price (€ / mtr.)
1.3566 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
1 mtr.
1.3566 €
25 mtr.
1.2495 €
50 mtr.
1.1662 €
100 mtr.
1.0948 €
*incl. VAT plus shipping costs
**Subject to prior sale

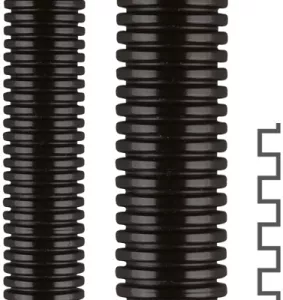

Corrugated tubing, 1 0231 002 010, FLEXA
Protective all-plastic tubing that is internally and externally corrugated with a fine profile, very flexible and used for economic applications.
Features
- Air and liquid-tight
- Resistant against hydrous solutions, acids and alkalis
- Widely resistant to solvents
- Free of silicone and cadmium
- Very good UV-resistant
- Flame retardant
Applications
- Machine and plant constructions
- Automotive
- Shipbuilding
- Automation
- Electrical installations
Technical specifications
| Outer diameter | 13 mm | |
| Bending radius | 20 mm | |
| Colour | black | |
| Flame-retardant | Yes | |
| Inner diameter | 9.8 mm | |
| Material | PP | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
