1 0231 002 012 | Flexa

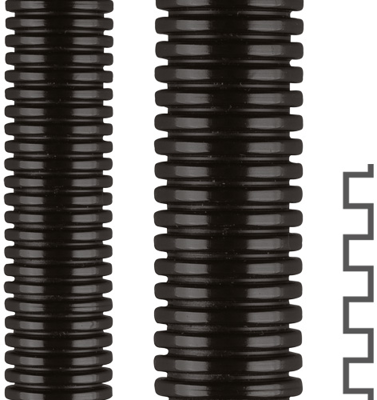

Corrugated hose, inside Ø 12.2 mm, outside Ø 15.8 mm, BR 25 mm, PP, black, 1 0231 002 012
Unit Price (€ / mtr.)
1.9397 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Total Price:
1.94 € *
Price list
Quantity
Price per unit*
1 mtr.
1.9397 €
25 mtr.
1.7731 €
50 mtr.
1.6660 €
100 mtr.
1.5589 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corrugated tubing, 1 0231 002 012, FLEXA
Protective all-plastic tubing that is internally and externally corrugated with a fine profile, very flexible and used for economic applications.
Features
- Air and liquid-tight
- Resistant against hydrous solutions, acids and alkalis
- Widely resistant to solvents
- Free of silicone and cadmium
- Very good UV-resistant
- Flame retardant
Applications
- Machine and plant constructions
- Automotive
- Shipbuilding
- Automation
- Electrical installations
Technical specifications
| Outer diameter | 15.8 mm | |
| Bending radius | 25 mm | |
| Colour | black | |
| Flame-retardant | Yes | |
| Inner diameter | 12.2 mm | |
| Material | PP | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
