1 0231 002 023 | Flexa

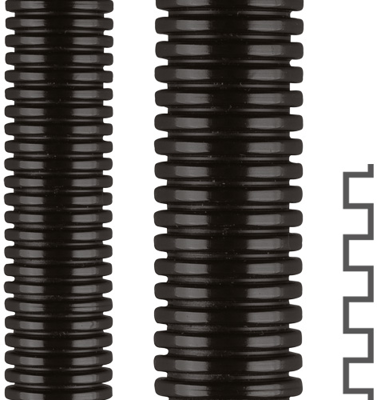

Corrugated hose, inside Ø 23 mm, outside Ø 28.5 mm, BR 45 mm, PP, black, 1 0231 002 023
Unit Price (€ / mtr.)
4.2126 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Total Price:
210.63 € *
Price list
Quantity
Price per unit*
50 mtr.
4.2126 €
100 mtr.
3.9270 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corrugated tubing, 1 0231 002 023, FLEXA
Protective all-plastic tubing that is internally and externally corrugated with a fine profile, very flexible and used for economic applications.
Features
- Air and liquid-tight
- Resistant against hydrous solutions, acids and alkalis
- Widely resistant to solvents
- Free of silicone and cadmium
- Very good UV-resistant
- Flame retardant
Applications
- Machine and plant constructions
- Automotive
- Shipbuilding
- Automation
- Electrical installations
Technical specifications
| Außendurchmesser | 28.5 mm | |
| Biegeradius | 45 mm | |
| Farbe | schwarz | |
| Flammwidrig | Yes | |
| Innendurchmesser | 23 mm | |
| Material | PP | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -40 °C | |
| Schutzart (IP) | IP68/IP69K |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39173200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
