1 0231 002 048 | Flexa
Corrugated hose, inside Ø 48 mm, outside Ø 54.5 mm, BR 80 mm, PP, black, 1 0231 002 048
Unit Price (€ / mtr.)
11.1265 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Total Price:
11.13 € *
Price list
Quantity
Price per unit*
25 mtr.
11.1265 €
50 mtr.
10.4363 €
100 mtr.
9.7342 €
*incl. VAT plus shipping costs
**Subject to prior sale

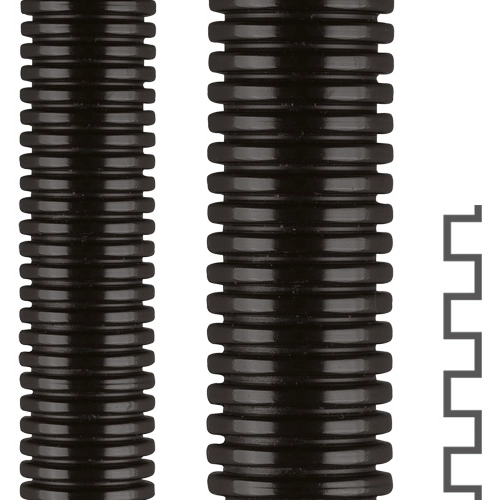

Corrugated tubing, 1 0231 002 048, FLEXA
Protective all-plastic tubing that is internally and externally corrugated with a fine profile, very flexible and used for economic applications.
Features
- Air and liquid-tight
- Resistant against hydrous solutions, acids and alkalis
- Widely resistant to solvents
- Free of silicone and cadmium
- Very good UV-resistant
- Flame retardant
Applications
- Machine and plant constructions
- Automotive
- Shipbuilding
- Automation
- Electrical installations
Technical specifications
| Outer diameter | 54.5 mm | |
| Bending radius | 80 mm | |
| Colour | black | |
| Flame-retardant | Yes | |
| Inner diameter | 48 mm | |
| Material | PP | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
