1 0232 201 023 | Flexa
Corrugated hose, inside Ø 23 mm, outside Ø 28.5 mm, BR 55 mm, PA, gray, 1 0232 201 023
Unit Price (€ / mtr.)
6.3070 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Total Price:
6.31 € *
Price list
Quantity
Price per unit*
50 mtr.
6.3070 €
100 mtr.
5.8905 €
*incl. VAT plus shipping costs
**Subject to prior sale

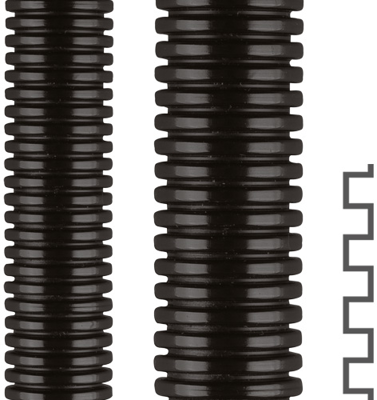

Corrugated tubing, 1 0232 201 023, FLEXA
Protective all-plastic tubing that is internally and externally corrugated, with a fine profile and reduced fire protection.
Features
- Air and liquid tight
- Oil resistant up to + 80° C
- Benzine resistant
- Widely resistant to acids and solvents
- Free of silicone, cadmium, halogen
- Flame retardant
- UV-resistant
Applications
- Automation
- Plant construction
- Railway
- Shipbuilding
- Electrical installations
- Automotive
- Machinery and equipment
Technical specifications
| Outer diameter | 28.5 mm | |
| Bending radius | 55 mm | |
| Colour | gray | |
| Flame-retardant | Yes | |
| Inner diameter | 23 mm | |
| Material | PA | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
