1 0233 232 023 | Flexa
Corrugated hose, inside Ø 22 mm, outside Ø 28.5 mm, BR 55 mm, PA, black, 1 0233 232 023
Unit Price (€ / mtr.)
8.5442 € *
Available: 0 mtr.
Leadtime: 2 Weeks **

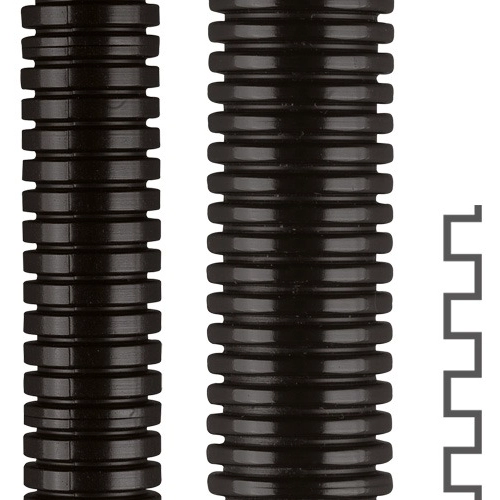

Corrugated tubing, 1 0233 232 023, Flexa
Protective all-plastic tubing, internally and externally corrugated with a coarse profile and used for almost all applications.
Features
- Air and liquid tight
- Oil resistant up to + 80° C
- Benzine resistant
- Widely resistant to acids and solvents
- Free of silicone, cadmium, halogen
- Self-extinguishing
- Flame retardant
- UV-resistant
Applications
- Machine and plant constructions
- Automotive
- Railway industry
- Shipbuilding
- Automation
- Electrical installations
Technical specifications
| Outer diameter | 28.5 mm | |

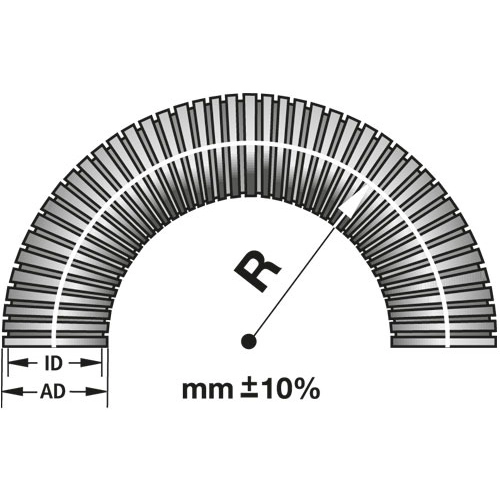

| Bending radius | 55 mm | |
| Colour | black | |
| Flame-retardant | Yes | |
| Inner diameter | 22 mm | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -40 °C | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
