1 0236 209 036 | Flexa

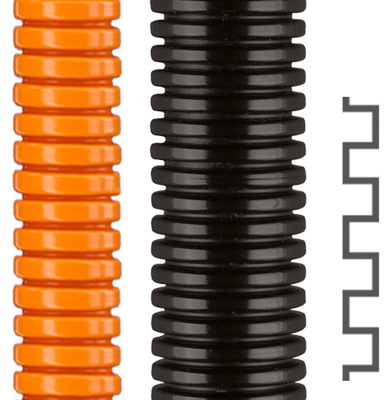

Corrugated hose, inside Ø 36 mm, outside Ø 42.5 mm, BR 80 mm, PA, orange, 1 0236 209 036
Unit Price (€ / mtr.)
20.7298 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Total Price:
20.73 € *
Price list
Quantity
Price per unit*
25 mtr.
20.7298 €
50 mtr.
19.4327 €
100 mtr.
18.1356 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corrugated tubing, 1 0236 209 036, FLEXA
Protective all-plastic tubing that is internally and externally corrugated with a fine profile, very flexible applications and outdoor areas.
Features
- High alternate bending strength
- Air and liquid-tight
- Oil and benzine resistant
- Widely resistant to acids and solvents
- Free of silicone, cadmium, halogen
- Self-extinguishing
- Flame retardant
- UV-resistant
Technical specifications
| Outer diameter | 42.5 mm | |
| Bending radius | 80 mm | |
| Colour | orange | |
| Flame-retardant | Yes | |
| Inner diameter | 36 mm | |
| Material | PA | |
| max. operating temperature | 130 °C | |
| min. operating temperature | -50 °C | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
