1 0255 202 110 | Flexa
Corrugated hose with slot, inside Ø 9.8 mm, outside Ø 13 mm, BR 20 mm, PA, black, 1 0255 202 110
Unit Price (€ / pc.)
59.9284 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

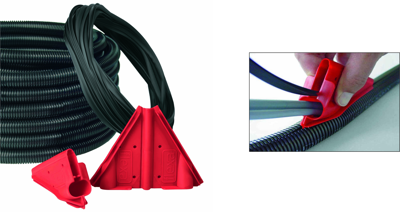

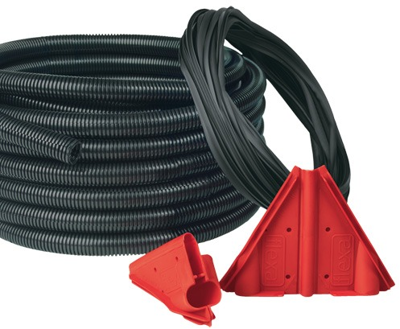

Corrugated tubing, 1 0255 202 110, Flexa
Protective all-plastic tubing, being internally and externally corrugated, slitted - re-closable for additional installation.
Features
- Oil resistant up to + 80° C
- Benzine resistant
- Widely resistant to acids and solvents
- Free of silicone, cadmium, halogen
- Self-extinguishing
- Flame retardant
- UV-resistant
Applications
- Machine and plant constructions
- Shipbuilding
- Automation
- Electrical Installations
Technical specifications
| Außendurchmesser | 13 mm | |
| Biegeradius | 20 mm | |
| Farbe | schwarz | |
| Flammwidrig | Yes | |
| Innendurchmesser | 9.8 mm | |
| Material | PA | |
| max. Temperatur | 130 °C | |
| min. Temperatur | -50 °C | |
| Schutzart (IP) | IP40 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39173200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
