1 0259 202 012 | Flexa

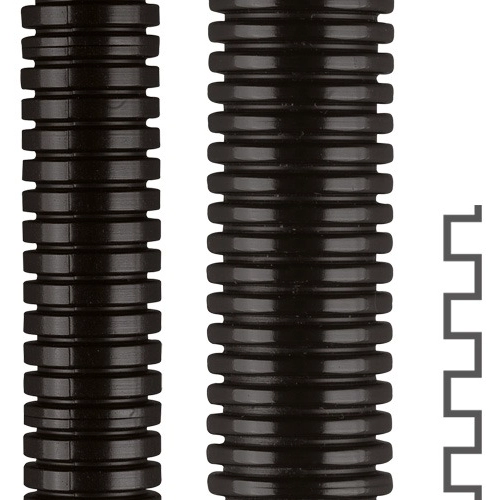

Corrugated hose, inside Ø 12 mm, outside Ø 15.8 mm, BR 22 mm, PA, black, 1 0259 202 012
Unit Price (€ / mtr.)
5.6168 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Corrugated tubing, 1 0259 202 012, FLEXA
Protective all-plastic tubing that is internally and externally corrugated, with fine profile, flexible, dissipative, for applications in the EX area.
Features
- High alternate bending strength
- Improved insulation properties
- Air- and liquid-tight
- Oil and benzine resistant
- Widely resistant to acids and solvents
- Free of silicone, cadmium, halogen
- UV-resistant
Applications
- Automation
- Plant construction
- Railway
- Shipbuilding
- Electrical installations
- Automotive
- Machinery and equipment
Technical specifications
| Outer diameter | 15.8 mm | |
| Bending radius | 22 mm | |
| Colour | black | |
| Flame-retardant | No | |
| Inner diameter | 12 mm | |
| Material | PA | |
| max. operating temperature | 130 °C | |
| min. operating temperature | -50 °C | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
