1 0261 202 029 | Flexa
Corrugated hose, inside Ø 29 mm, outside Ø 34.5 mm, BR 65 mm, PA, black, 1 0261 202 029
Unit Price (€ / mtr.)
8.1872 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Total Price:
8.19 € *
Price list
Quantity
Price per unit*
1 mtr.
8.1872 €
25 mtr.
7.4851 €
50 mtr.
7.0210 €
100 mtr.
6.5569 €
*incl. VAT plus shipping costs
**Subject to prior sale

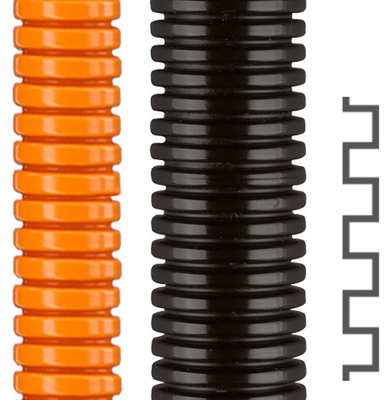

Corrugated tubing, 1 0261 202 029, FLEXA
Protective all-plastic tubing that is internally and externally corrugated. Has a fine or coarse profile with fire protection, is economical and with HB (UL 94) standard.
Features
- Air and liquid tight
- Oil resistant up to + 80° C
- Benzine resistant
- Widely resistant to acid and solvents
- Free of silicone, cadmium and halogen
- Flame retardant
- UV-resistant
Applications
- Machine and plant constructions
- Automotive
- Shipbuilding
- Automation
- Electrical installations
Technical specifications
| Outer diameter | 34.5 mm | |
| Bending radius | 65 mm | |
| Colour | black | |
| Flame-retardant | Yes | |
| Inner diameter | 29 mm | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -25 °C | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
