1 0267 232 048 | Flexa
Corrugated hose, inside Ø 47 mm, outside Ø 54.5 mm, BR 100 mm, PA, black, 1 0267 232 048
Unit Price (€ / mtr.)
11.0194 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Total Price:
11.02 € *
Price list
Quantity
Price per unit*
25 mtr.
11.0194 €
50 mtr.
10.3292 €
100 mtr.
9.6390 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corrugated plastic tubing, 1 0267 232 048, Flexa
Corrugated all-plastic tubing internally and externally corrugated.
Features
- Air- and liquid-tight
- Oil resistant up to +80 °C
- Benzine resistant
- Widely resistant to acids and solvents
- Free of silicone, cadmium, halogen
- Flame retardant
- UV resistant
Applications
- Machine and plant constructions
- Automotive
- Shipbuilding
- Automation
- Electrical installations

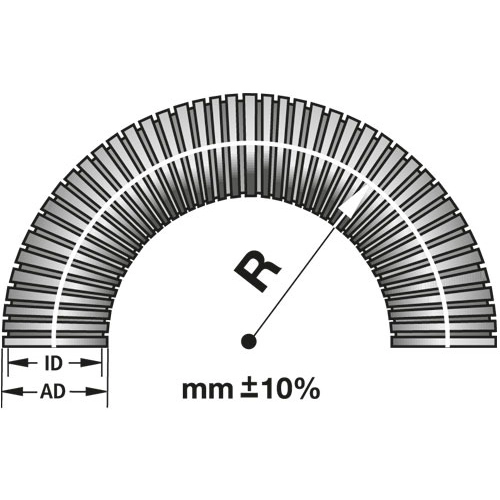

Technical specifications
| Outer diameter | 54.5 mm | |
| Bending radius | 100 mm | |
| Colour | black | |
| Flame-retardant | Yes | |
| Inner diameter | 47 mm | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -25 °C | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
