1 2010 112 022 | Flexa
Spiral protective hose, inside Ø 22 mm, outside Ø 27 mm, BR 60 mm, metal/PVC, black, 1 2010 112 022
Unit Price (€ / mtr.)
14.6013 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Protective metal conduit, 1 2010 112 022, Flexa

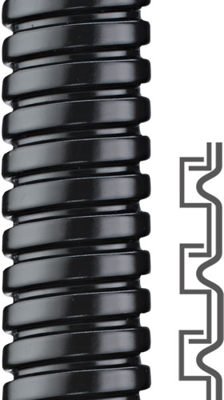

Protective metal conduit, strip-wound, s profile and PVC sheathing.
Features
- Weatherproof
- Watertight
- Widely resistant to seawater, acids, oils
- Free of silicone and cadmium
- Very flexible
- Stretch-resistant
- Compression-resistant
Applications
- Machine and plant constructions
- Shipbuilding
- Automation
- Electrical installations
- Sensor technology
Technical specifications
| Außendurchmesser | 27 mm | |
| Biegeradius | 60 mm | |
| Farbe | schwarz | |
| Flammwidrig | No | |
| Innendurchmesser | 22 mm | |
| Material | Metall/PVC | |
| max. Temperatur | 100 °C | |
| min. Temperatur | -25 °C | |
| Schutzart (IP) | IP68 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 83071000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
