1 2013 202 022 | Flexa
Protective hose, inside Ø 22 mm, outside Ø 27 mm, BR 60 mm, metal/PA, black, 1 2013 202 022
Unit Price (€ / mtr.)
20.7179 € *
Available: 0 mtr.
Leadtime: 2 Weeks **

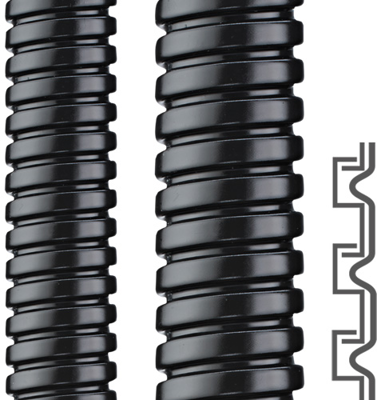

Protective metal conduit, 1 2013 202 022, Flexa
Protective metal conduit, strip-wound, s profile and PA sheathing.
Features
- Flexible
- Liquid-tight
- Tensile strength
- Free of silicone, cadmium, halogen
- Oil and gasoline resistant
- Resistant to transverse pressure
Applications
- Shipbuilding
- Automation
- Electrical equipment
- Mechanical engineering
- Vehicle construction
- Rail vehicles
Technical specifications
| Outer diameter | 27 mm | |
| Bending radius | 60 mm | |
| Colour | black | |
| Flame-retardant | No | |
| Inner diameter | 22 mm | |
| Material | metal/PA | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -50 °C | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 83071000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
