1 2030 101 010 | Flexa

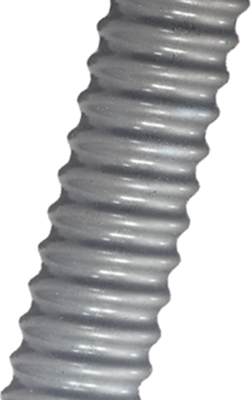

Spiral protective hose, inside Ø 10 mm, outside Ø 14 mm, BR 10 mm, PVC, gray, 1 2030 101 010
Unit Price (€ / mtr.)
6.0333 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Plastic conduit, PVC, series AIRflex-KUW-PVC-AS, type Flexa 2030.101.

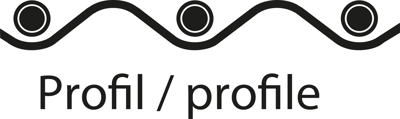

Tested to EN/IEC 61386-23, ultra-flexible, can be stretched and upset as required, air-tight, liquid-proof, free of silicon and cadmium, corrosion protected inside; Structure: strip-wound. Sheathing: PVC. Inner helix: PVC sheathed spring steel wire. Color: gray. Degree of protection: IP 68. Operating temperatures: –25 to +80 °C. Certifications: VDE, UL. Original bundle length: 50 m.
Technical attributes (type, inner diameter (ID), outer diameter (OD), bending radius (BR)): 2030.101.010, ID 10, OD 14, Br 10 mm
Technical specifications
| Outer diameter | 14 mm | |
| Bending radius | 10 mm | |
| Colour | gray | |
| Flame-retardant | Yes | |
| Inner diameter | 10 mm | |
| Material | PVC | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -25 °C | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
| Original Packaging | Reel with 50 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
