1 2061 809 030 | Flexa

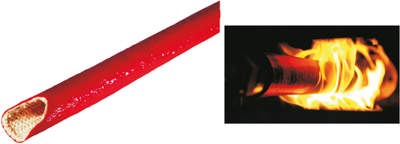

Fire protection hose, inside Ø 30 mm, outside Ø 37 mm, calcium silicate, silicone, red, 1 2061 809 030
Unit Price (€ / mtr.)
53.6333 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Fire protection conduit series FLEXAhightemp, type Flexa 2061.809.
Protects against liquid metal splashing (+1500 °C), radiated heat, withstands brief exposure to open fire to DIN 5510 (ST2/SR2/S4), DIN 86230/ISO 15540 +800 °C min. 30 min.. Highly flexible, water-proof, abrasion-proof, flame retardant, self-extinguishing; Material: calcium silicate braid. Sheath: silicon. Color: red. Operating temperatures: –50 to +350 °C (briefly to +700 °C).
Technical attributes (type, inner/outer diameter): 2061.809.030, 30/37 mm
Technical specifications
| Außendurchmesser | 37 mm | |
| Farbe | rot | |
| Flammwidrig | Yes | |
| Innendurchmesser | 30 mm | |
| Material | Calciumsilikat, Silikon | |
| max. Temperatur | 350 °C | |
| min. Temperatur | -50 °C | |
| Nennweite | 30 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39173900 |
| Originalverpackung | Rolle mit 15 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
