1 2131 101 007 | Flexa

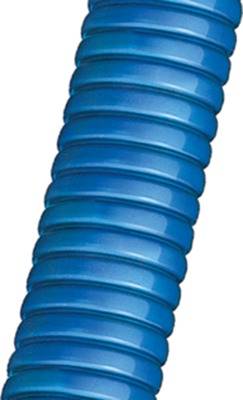

Protective hose, inside Ø 7 mm, outside Ø 10 mm, BR 44 mm, PUR, blue, 1 2131 101 007
Protective metal conduit with polyurethane sheath, series FLEXAgraff-PU-AS, type Flexa 2131.101.

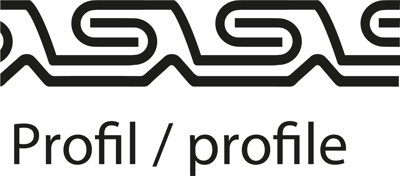

Tested to EN/IEC 61386-23, highly flexible. Excellent behavior at low temperatures. High tensile and twisting strength. Resistant to oil, gasoline and grease products. Free of halogen, silicon and cadmium. Flame-proof. Resistant to microbiological influence. Excellent shielding properties; Structure: helical coiling, double folded profile (Agraff). Material: cold-rolled steel strip DC 03 to EN 10139, galvanized, Fe/Zn 3. Sheath: polyurethane (PU). Color: metallic blue. Degree of protection: IP 68. Operating temperatures: –40 to +80 °C. Original bundle length: 10 m.
Technical attributes (type, inner diameter (ID), outer diameter (OD), bending radius (BR)): 2131.101.007, ID 7.0, OD 10, BR 44 mm
| Outer diameter | 10 mm | |
| Bending radius | 44 mm | |
| Colour | blue | |
| Flame-retardant | Yes | |
| Inner diameter | 7 mm | |
| Material | PUR | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -40 °C | |
| Degree of protection (IP) | IP68 |
| Country of origin | DE |
| Customs tariff number | 83071000 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
