CM42 | FLIR

Name: TRMS AC current clamp CM42, 400 A (AC), 600 V (DC), 600 V (AC), opening 30 mm, CAT III 600 V, CAT IV 300 V
Brand: FLIR
SKU: 22K0014
Availability: OutOfStock

TRMS AC current clamp CM42, 400 A (AC), 600 V (DC), 600 V (AC), opening 30 mm, CAT III 600 V, CAT IV 300 V

Order No.: 22K0014

EAN: 4099891456870

MPN:

CM42

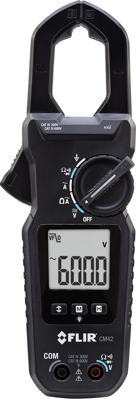

Image may differ

Key Specification:

Version AC current clamp

TRMS possible Yes

Pliers opening 30 mm

Surge voltage category CAT III 600 V, CAT IV 300 V

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

TRMS AC current clamp CM44, 400 A (AC), 600 V (DC), 600 V (AC), opening 30 mm, CAT III 600 V, CAT IV 300 V

Order No.: 22K0015

Manufacturer: FLIR

per pc. 213.01 € *

*incl. VAT plus shipping costs

Description

TRMS Current Clamp, CM42, FLIR

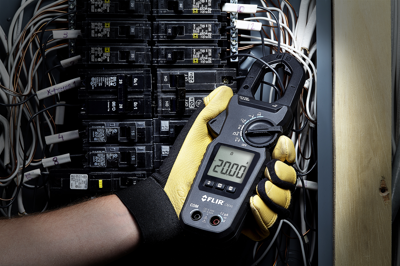

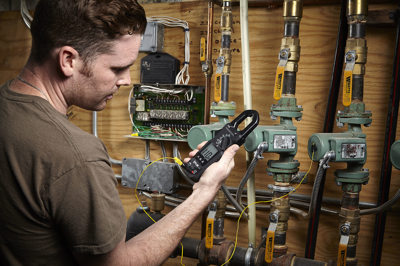

The FLIR CM42 is a professional and affordable True RMS meter designed for commercial and residential electricians. The CM42 features AC clamp measurement and is equipped with a bright backlit display for trouble free use inside electrical panels. Accu-Tip technology delivers amperage measurements on smaller-gauged wires more accurately to a tenth of a digit. Offers MAX/MIN/AVG recording, frequency measurement modes, and electrical field detection to help you determine voltage presence and relative strength of the field. Made with an over-molded, easy-to-grip design, the CM42 clamp meter is durable enough to withstand a two-meter drop, and the slim form factor is convenient to carry in your tool bag anywhere you go. Includes Clamp meter, batteries and a user manual.

Technical specifications

	Version	AC current clamp
	TRMS possible	Yes
	max. measured value (frequency)	400 Hz
	max. measured current value (AC)	400 A
	max. resistance range	6 MΩ
	min. Measured value (frequency)	50 Hz
	max. voltage measuring range (AC)	600 V
	max. voltage measuring range (DC)	600 V
	Surge voltage category	CAT III 600 V, CAT IV 300 V
	Pliers opening	30 mm
