DM66 | FLIR
TRMS digital multimeter DM66, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 200 nF to 10 mF, CAT III 600 V, CAT IV 300 V
Unit Price (€ / pc.)
236.81 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

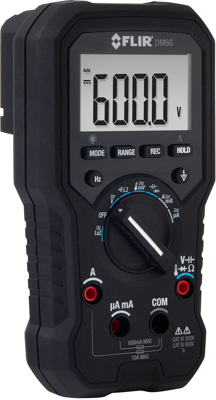

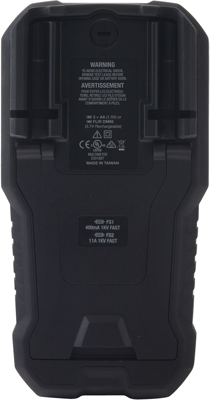

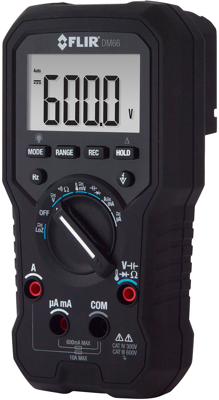

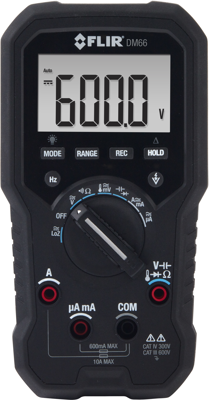

TRMS Multimeter, DM66, FLIR
The FLIR DM66 digital multimeter combines a rich feature set, precise measurements, and quality for exceptional value. The meter is easy to use and built to last, providing long-term stability for everyday use. The FLIR DM66 has a low impedance (LoZ) mode to prevent ghost voltage from delivering false readings. It measures frequency, diode, capacitance, and temperature, for a comprehensive feature set ideal for commercial electricians and automation field, service or electronics technicians. Product comes with DM66 with integral probe holder, 2 × alkaline batteries (AAA), high-quality silicone test leads, alligator clips, and soft carrying case.
Technical specifications
| Version | Digital-Multimeter | |
| TRMS possible | Yes | |
| Capacity range | 200 nF bis 10 mF | |
| max. measured current value (AC) | 10 A | |
| max. measured current value (DC) | 10 A | |
| max. resistance range | 60 MΩ | |
| max. voltage measuring range (AC) | 600 V | |
| max. voltage measuring range (DC) | 600 V | |
| Surge voltage category | CAT III 600 V, CAT IV 300 V |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 90303100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
