750P29 | Fluke

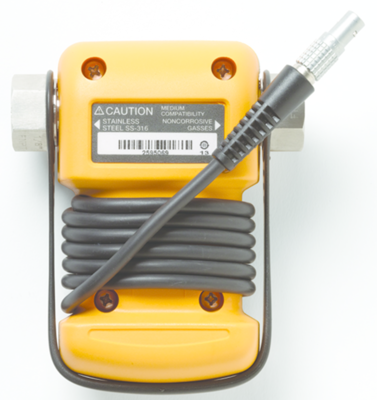

Fluke Pressure module, 750P29, 4352403
Unit Price (€ / pc.)
3,558.10 € *
Available: 0 pcs.
Leadtime: On Request **
Overpressure transducer, 4352403, Fluke
Fluke 750P Series pressure modules are very easy to use. To measure pressure, connect the pressure module to a pressure source or hand pump, then connect the pressure module cable to the calibrator. Apply pressure from the pressure source and it will be displayed on the calibrator's digital display. The pressure display can be selected from up to 11 different engineering units at the touch of a button. With 750 Series documenting process calibrators, pressure readings can be time-stamped and stored electronically for later retrieval. This saves time, eliminates errors, and supports compliance with quality standards and guidelines.
Technical specifications
| Resolution | 0 to 200000 mbar | |
| Version | Pressure module | |
| Accuracy | ±0.035 % | |
| max. operating temperature | 50 °C | |
| measurement range | 0 to 3000 psi, 0 to 200 bar | |
| min. operating temperature | -10 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 90262040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
