FLUKE 715 | Fluke
CALIBRATOR FLUKE 715
Order No.: 24K2292
EAN: 0095969050692
MPN:
FLUKE 715
620101
Unit Price (€ / pc.)
2,290.75 € *
Available: 0 pcs.
Leadtime: On Request **
Calibrator, 620101, Fluke

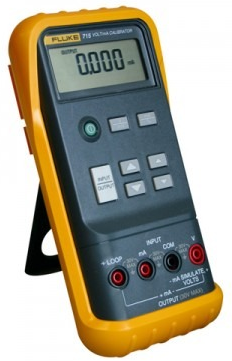

The Fluke 715 volts/mA calibrator offers superior performance, durability and reliability. Featuring the same rugged housing as Fluke's 80 Series digital multimeters, the calibrator is compact, lightweight and easy to carry. Thanks to its push-button user interface, which is also used in the 740 Series multifunctional documenting process calibrators, the Fluke 715 is extremely easy to use. It is insensitive to electromagnetic interference, dust and splash proof, and has a removable battery door that makes battery replacement quick and easy.
Features
- Measure loop current signals (0 - 20 mA, 4 - 20 mA) with very low inaccuracy of 0.015% and resolution of 1 mA
- Measure voltage output process signals from PLCs and transmitters
- 24 mA loop current input or simulation
- Source voltage up to 100 mV or 10 V
Technical specifications
| Product type | Kalibrator | |
| measurement range | 0-24 mA, 0-200 mV, 0-20 V | |
| Resolution | 0,001 mA, 0,01 mV, 0,001 V | |
| Voltage | 20 V | |
| min. operating temperature | -10 °C | |
| max. operating temperature | 55 °C | |
| Length | 187 mm | |
| Width | 87 mm | |
| Depth | 32 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 90303370 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
