325/T130VDE | Fluke

Name: TRMS clamp meter 325/T130VDE, 400 A (DC), 400 A (AC), 600 V (DC), 600 V (AC), opening 30 mm, CAT III 600 V, CAT IV 300 V
Brand: Fluke
SKU: 27K2020
Availability: OutOfStock

TRMS clamp meter 325/T130VDE, 400 A (DC), 400 A (AC), 600 V (DC), 600 V (AC), opening 30 mm, CAT III 600 V, CAT IV 300 V

Order No.: 27K2020

EAN: 4099891457785

MPN:

325/T130VDE

5199138

Image may differ

Key Specification:

Ausführung Zangenmessgerät

Echteffektivwertmessung (TRMS) möglich Yes

Zangenöffnung 30 mm

Überspannungskategorie CAT III 600 V, CAT IV 300 V

max. Strommesswert (bei DC) 400 A

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

TRMS current clamp FLUKE 325, 400 A (DC), 400 A (AC), 600 V (DC), 600 V (AC), opening 30 mm, CAT III 600 V, CAT IV 300 V

Order No.: 99K441

Manufacturer: Fluke

per pc. 343.91 € *

*incl. VAT plus shipping costs

Description

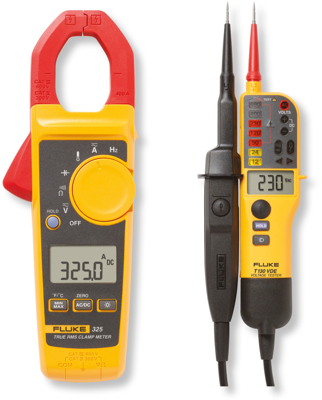

Electrician Starter Kit, 325/T130VDE, Fluke

Real effective value measurements and optimized ergonomics make the 320 Series clamp meters the most important measuring instruments for installation and troubleshooting in industrial and building applications. The Fluke 323, 324, and 325 Clamp Meters are designed to test circuits, switches, fuses, and contacts for presence of load current, AC voltage, or continuity. These compact and robust clamp meters are ideal for current measurements up to 400 A in cramped switch cabinets. The Fluke 325 clamp meter also measures DC and frequency.

Technical specifications

	Ausführung	Zangenmessgerät
	Echteffektivwertmessung (TRMS) möglich	Yes
	max. Messwert (Frequenz)	400 Hz
	max. Strommesswert (bei AC)	400 A
	max. Strommesswert (bei DC)	400 A
	min. Messwert (Frequenz)	40 Hz
	Spannungsmessbereich (AC)	600 V
	Spannungsmessbereich (DC)	600 V
	Überspannungskategorie	CAT III 600 V, CAT IV 300 V
	Zangenöffnung	30 mm
