FLK 369 FC | Fluke
TRMS leakage current clamp FLK 369 FC, 60 A (AC), opening 61 mm, CAT III 600 V, CAT IV 300 V
Unit Price (€ / pc.)
1,276.87 € *
Available: 0 pcs.
Leadtime: On Request **

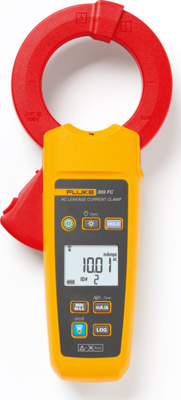

True RMS leakage current clamp, 4709934, Fluke
The Fluke 369 FC true-rms leakage current clamp allows users to acquire, document, record and compare measured values over time to avoid unplanned downtime and to determine intermittent tripping of residual current circuit breakers and residual current protective devices without taking the equipment out of service.
Features
- Accurate true rms measurements on complex, non-sinusoidal signals
- 61 mm clamp opening
- Measurement up to 60 A, highest resolution of 1 μA
- Switchable filter function eliminates unwanted noise
Technical specifications
| Version | leakage current clamp | |
| TRMS possible | Yes | |
| max. measured value (frequency) | 1 kHz | |
| max. measured current value (AC) | 60 A | |
| min. Measured value (frequency) | 40 Hz | |
| Surge voltage category | CAT III 600 V, CAT IV 300 V | |
| Pliers opening | 61 mm |
Download
Logistics
| Country of origin | CN |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
