FLUKE-377 FC/E | Fluke
TRMS clamp meter FLUKE-377 FC/E, 999.9 A (DC), 2500 A (AC), 600 V (DC), 600 V (AC), opening 34 mm, CAT III 1000 V, CAT IV 600 V
Unit Price (€ / pc.)
910.35 € *
Available: 2 pcs.
Leadtime: 3 Weeks **

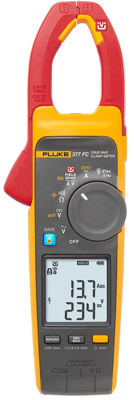

Clamp meter, FLUKE-377 FC/E, Fluke
The Fluke true-rms clamp meter uses FieldSense technology to make testing faster and safer, all without contacting a live conductor. You get accurate voltage and current measurements through the clamp jaw.
Features
- Phase rotation auto-calculated and shown on the Fluke Connect software
- Full set of phase-to-ground and phase-to-phase values calculated and shown on the meter
- No more hand-written notes or complicated math
Technical specifications
| Ausführung | Zangenmessgerät | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| max. Messwert (Frequenz) | 500 Hz | |
| max. Strommesswert (bei AC) | 2500 A | |
| max. Strommesswert (bei DC) | 999.9 A | |
| max. Widerstandsmessbereich | 60 kΩ | |
| min. Messwert (Frequenz) | 20 Hz | |
| Spannungsmessbereich (AC) | 600 V | |
| Spannungsmessbereich (DC) | 600 V | |
| Überspannungskategorie | CAT III 1000 V, CAT IV 600 V | |
| Zangenöffnung | 34 mm |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 90303200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
