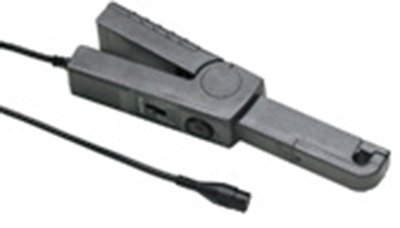

FLUKE 80I-110S | Fluke

Name: TRMS AC/DC current clamp FLUKE 80I-110S, 100 A (DC), 100 A (AC), 600 V (AC), opening 11.8 mm, CAT II 600 V, CAT III 300 V
Brand: Fluke
SKU: 20K1052
Price: 1,343.51 EUR
Availability: OutOfStock

TRMS AC/DC current clamp FLUKE 80I-110S, 100 A (DC), 100 A (AC), 600 V (AC), opening 11.8 mm, CAT II 600 V, CAT III 300 V

Order No.: 20K1052

EAN: 0095969040549

MPN:

FLUKE 80I-110S

114519

Image may differ

Key Specification:

Version AC/DC current clamp

TRMS possible Yes

Pliers opening 11.8 mm

Surge voltage category CAT II 600 V, CAT III 300 V

max. measured current value (DC) 100 A

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1,343.51 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

1,343.51 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

AC/DC Current Clamp, 114519, Fluke

The 80I-110s is compatible with any Fluke ScopeMeter Test Tool, Power Harmonics Analyzer, Oscilloscope, Multimeter, or other voltage measurement device that has the following features: BNC input connectors or if using a meter convert the banana plugs to a BNC connector using the adapter PM9081/001.

Technical specifications

	Version	AC/DC current clamp
	TRMS possible	Yes
	max. measured value (frequency)	20 kHz
	max. measured current value (AC)	100 A
	max. measured current value (DC)	100 A
	min. Measured value (frequency)	1 Hz
	max. voltage measuring range (AC)	600 V
	Surge voltage category	CAT II 600 V, CAT III 300 V
	Pliers opening	11.8 mm
