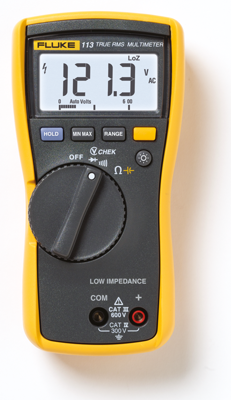

FLUKE 113 | Fluke
TRMS digital multimeter FLUKE 113, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 1 nF to 9999 μF, CAT III 600 V
Unit Price (€ / pc.)
201.11 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

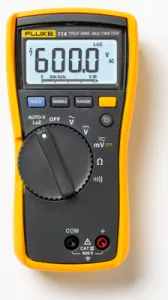

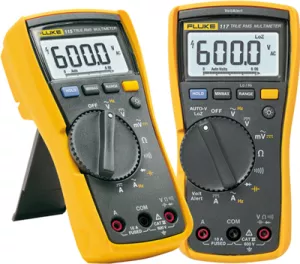

Digital multimeters, type Fluke 113/114/115/116/117.
Small and ergonomic, true RMS measurement AC, backlit display with 6000 digits and additional analog bar graph display, MIN/MAX/AVG recording of signal fluctuation, Display Hold, auto-ranging and manual range selection, battery voltage display; Dimensions: 167 x 84 x 46. Weight: 550 g. Supplied with test leads TL 75, holster, 9.0-V battery and manual.
Fluke 113.
Functions/tolerance: DC voltage to 600 V/±2.0 %, VCHEK(TM) to 600 V AC/DC/±2.0 %, resistance to 60 kohm/±0.9 %, capacitance to 10000 µF/±1.9%.
Type: Fluke 113, digital multimeter
Technical specifications
| Anzeige Digits | 60000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| Kapazitätsbereich | 1 nF bis 9999 μF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 40 MΩ | |
| Spannungsmessbereich (AC) | 600 V | |
| Spannungsmessbereich (DC) | 600 V | |
| Überspannungskategorie | CAT III 600 V |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 90303200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
