FLUKE 117 | Fluke
TRMS digital multimeter FLUKE 117, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 1 nF to 9999 μF, CAT III 600 V
Unit Price (€ / pc.)
355.81 € *
Available: 2 pcs.
Leadtime: 1 Week **

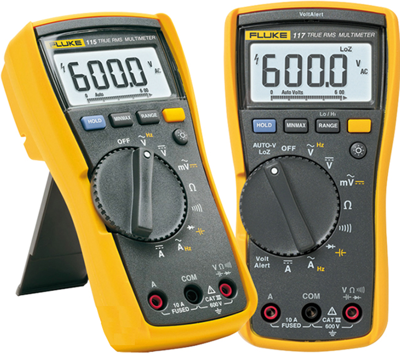

Digital multimeters, type Fluke 113/114/115/116/117.
Small and ergonomic, true RMS measurement AC, backlit display with 6000 digits and additional analog bar graph display, MIN/MAX/AVG recording of signal fluctuation, Display Hold, auto-ranging and manual range selection, battery voltage display; Dimensions: 167 x 84 x 46. Weight: 550 g. Supplied with test leads TL 75, holster, 9.0-V battery and manual.
Fluke 117.
Functions/tolerance: DC voltage to 600 V/±0.5 %, AC voltage to 600 V/±1.0 %, DC current to 10 A/±1.0 %, AC current up to 10 A/±1.5%, resistance up to 40 Mohm/±0.9 %, capacitance up to 10000 µF/±1.9%, frequency up to 50 kHz ±0.1%, low input impedance.
Type: Fluke 117, digital multimeter
Technical specifications
| Anzeige Digits | 60000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| Kapazitätsbereich | 1 nF bis 9999 μF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 40 MΩ | |
| Spannungsmessbereich (AC) | 600 V | |
| Spannungsmessbereich (DC) | 600 V | |
| Überspannungskategorie | CAT III 600 V |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 90303200 |
Compliance
| RoHS konform | not_relevant |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
