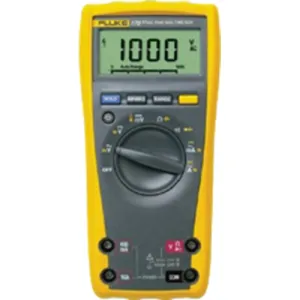

FLUKE 177 | Fluke

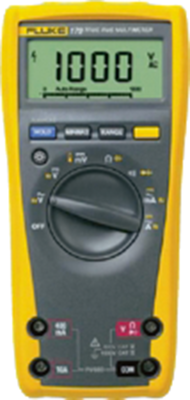

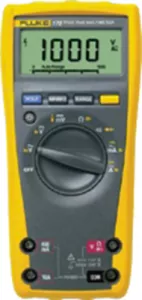

TRMS digital multimeter FLUKE 177, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 1 µF to 9.999 mF, CAT III 1000 V, CAT IV 600 V
Unit Price (€ / pc.)
419.1418 € *
Available: 1 pcs.
Next delivery: 3 pcs. on 2025-03-04
Leadtime: 3 Weeks **
True-RMS Digital Multimeter, 1592874, Fluke
Fluke 177 TRMS Digital Multimeter with display backlight delivers the right features for electrical maintenance experts
Independently tested for safe use in CAT IV 600 V/CAT III 1000 V environments. The Fluke 177 TRMS digital multimeter includes all the features you need to troubleshoot and repair many problems in electrical and electronic systems.
With this digital multimeter you get True-RMS voltage and current measurements, 6000-count resolution, manual and automatic ranging, and frequency, capacitance, resistance, continuity, and diode measurements. In addition, the Fluke 177 provides 0.09% basic accuracy, a digital display with analog bar graph and backlight. Plus a limited lifetime warranty.
Features
- Increases productivity with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording
- Delivers accurate True-RMS AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements
- Features digital display with backlight for working in dim lighting
- Allows closed case calibration through front panel
- Features an ergonomic case with integrated protective holster
- Comes with a limited lifetime warranty
Technical specifications
| Anzeige Digits | 6000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| Kapazitätsbereich | 1 µF bis 9,999 mF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 50 MΩ | |
| Spannungsmessbereich (AC) | 1000 V | |
| Spannungsmessbereich (DC) | 1000 V | |
| Überspannungskategorie | CAT III 1000 V, CAT IV 600 V |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 90303100 |
Compliance
| RoHS konform | not_relevant |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
