FLUKE 287/EUR | Fluke
TRMS digital multimeter FLUKE 287/EUR, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 1 pF to 100 mF, CAT III 1000 V, CAT IV 600 V
Unit Price (€ / pc.)
986.9503 € *
Available: 0 pcs.
Leadtime: On Request **

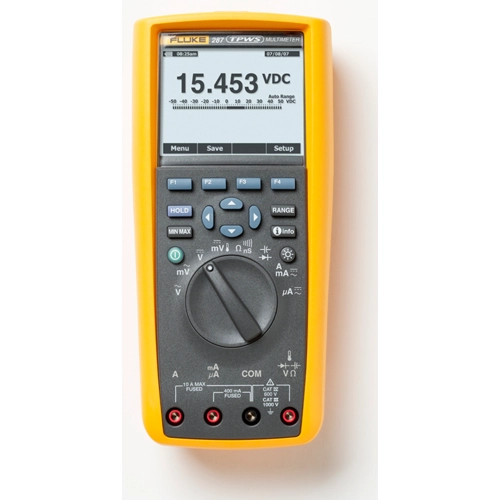

Digital/analog multimeters Fluke 287
True RMS multimeter with logging function and trend view. 50000-digit 1/4 VGA dot matrix display, 0.025 % basic tolerance with DC voltage, multilingual user interface, info button for calling help tests about measuring functions, internal memory for automatic data logging for the duration of up to 180 h, true RMS measurements, 100 kHz AC bandwidth, MIN/MAX/AVG logging with time specification for recording signal fluctuations, optical USB port
DC and AC voltage: up to 1000 V
DC and AC current: 10 A (20 briefly to 30 s)
Temperature: - 200 to +1350 °C
Resistance: up to 500 Mohm
Conductance: up to 50 nS
Capacitance: up to 100,000 µF
Frequency: up to 1.0 MHz
Dimensions H 222, W 102, D 60 mm
Weight: 871 g
Technical specifications
| Anzeige Digits | 500000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| Kapazitätsbereich | 1 pF bis 100 mF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 500 MΩ | |
| Spannungsmessbereich (AC) | 1000 V | |
| Spannungsmessbereich (DC) | 1000 V | |
| Überspannungskategorie | CAT III 1000 V, CAT IV 600 V |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 90308400 |
Compliance
| RoHS konform | not_relevant |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
