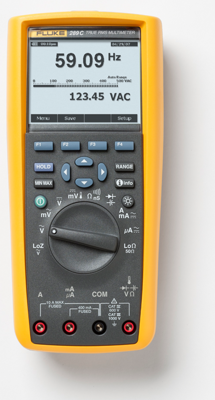

FLUKE 289/EUR | Fluke
Digital multimeter FLUKE 289/EUR, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 1 pF to 100 mF, CAT III 600 V, CAT IV 300 V
Digital/analog multimeters, type Fluke 28.
True RMS multimeter with logging function and trend view. 50000-digit 1/4 VGA dot matrix display, 0.025 % basic tolerance with DC voltage, multilingual user interface, info button for calling help tests about measuring functions, internal memory for automatic data logging for the duration of up to 180 h, true RMS measurements, 100 kHz AC bandwidth, MIN/MAX/AVG logging with time specification for recording signal fluctuations, optical USB port; DC and AC voltage: up to 1000 V. DC and AC current: 10 A (20 briefly to 30 s). Temperature: –200 to +1350 °C. Resistance: up to 500 Mohm. Conductance: up to 50 nS. Capacitance: up to 100,000 µF. Frequency: up to 1.0 MHz. Dimensions H 222, W 102, D 60 mm. Weight: 871 g. Supplied with manual, 6 batteries (AA). TL71 test leads, test tip holder, two alligator clips.
For industrial applications, type 289.
Type 289 provides the following additional functions: low-pass filter, 50 ohm range for low impedance measurements, LoZ technology for preventing any corruption of measured values as a result of stray voltages.
Type: Fluke 289, digital multimeter
| Anzeige Digits | 60000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | No | |
| Kapazitätsbereich | 1 pF bis 100 mF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 500 MΩ | |
| Spannungsmessbereich (AC) | 1000 V | |
| Spannungsmessbereich (DC) | 1000 V | |
| Überspannungskategorie | CAT III 600 V, CAT IV 300 V |
| Ursprungsland | US |
| Zolltarifnummer | 90303200 |
| RoHS konform | not_relevant |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
