FLUKE 289/FVF/EUR | Fluke
TRMS digital multimeter FLUKE 289/FVF/EUR, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 1 pF to 100 mF, CAT III 1000 V, CAT IV 600 V
Digital/analog multimeters, type Fluke 28.
True RMS multimeter with logging function and trend view. 50000-digit 1/4 VGA dot matrix display, 0.025 % basic tolerance with DC voltage, multilingual user interface, info button for calling help tests about measuring functions, internal memory for automatic data logging for the duration of up to 180 h, true RMS measurements, 100 kHz AC bandwidth, MIN/MAX/AVG logging with time specification for recording signal fluctuations, optical USB port; DC and AC voltage: up to 1000 V. DC and AC current: 10 A (20 briefly to 30 s). Temperature: –200 to +1350 °C. Resistance: up to 500 Mohm. Conductance: up to 50 nS. Capacitance: up to 100,000 µF. Frequency: up to 1.0 MHz. Dimensions H 222, W 102, D 60 mm. Weight: 871 g. Supplied with manual, 6 batteries (AA). TL71 test leads, test tip holder, two alligator clips.
With FlukeView Forms software for measurement and analysis, type 289/FVF.

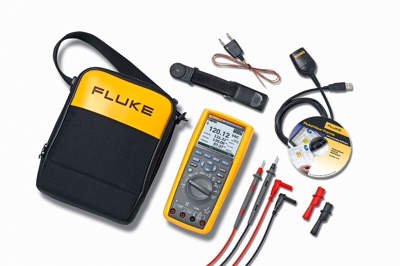

FlukeView Forms software permits measurement trends and changes in condition to be documented and even allows overlaying of logged data from six different measuring devices or time periods. Otherwise identical to Fluke 289; Additional to the scope of delivery described above: FVF software, IR/USB cable and cushioned carrying bag.
Type: Fluke 289/FVF, multimeter with software
| Anzeige Digits | 500000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| Kapazitätsbereich | 1 pF bis 100 mF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 500 MΩ | |
| Spannungsmessbereich (AC) | 1000 V | |
| Spannungsmessbereich (DC) | 1000 V | |
| Überspannungskategorie | CAT III 1000 V, CAT IV 600 V |
| Ursprungsland | US |
| Zolltarifnummer | 90303200 |
| RoHS konform | not_relevant |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
