FLUKE 28II/EUR | Fluke

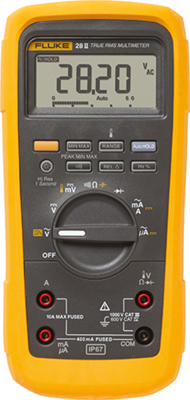

TRMS digital multimeter FLUKE 28II/EUR, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 1 nF to 9999 μF, CAT III 1000 V, CAT IV 600 V
Digital multimeters, type Fluke 27-II/28-II.
For use in harsh environments with additional analog bar graph display, backlit, illuminated keys, MIN/MAX/AVG recording, Auto-Hold; Range selection: automatic or manual. Operating temperatures: –15 to +55 °C (20 min. to –40 °C). Degree of protection: IP 67. Safety specification: CAT III 1000 V, CAT IV 600 V, IEC, ANSI. Dimensions: 198 x 100 x 63.5 mm. Supplied with test leads TL 75, alligator clips AC 72, thermal probe 80BK-A (only 28 II), manual, CD-ROM, holster and 3 batteries (AA).
Fluke 28-II.
TRMS measurement and low-pass filter; Display scope: 6000/20000 digits. AC current: 0.1 mV to 1000 V (0.05 % tolerance). AC voltage: 0.1 mV to 1000 V (0.7 %). DC current: 0.1 µA to 10 A (0.2 %). AC current: 0.1 µA to 10 A (1.0 %). Resistance: 0.1 ohm to 50 Mohm. Capacitance: 1.0 nF to 9999 µF. Frequency: 0.5 Hz to 199.99 kHz. Temperature: –200 °C to +1090 °C.
Type: Fluke 28-II, digital multimeter
| Anzeige Digits | 20000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| Kapazitätsbereich | 1 nF bis 9999 μF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 50 MΩ | |
| Spannungsmessbereich (AC) | 1000 V | |
| Spannungsmessbereich (DC) | 1000 V | |
| Überspannungskategorie | CAT III 1000 V, CAT IV 600 V |
| Ursprungsland | US |
| Zolltarifnummer | 90303200 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
