FLUKE 83-V/EUR | Fluke
Digital multimeter FLUKE 83-V/EUR, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 10 pF to 9.999 mF, CAT III 1000 V, CAT IV 600 V

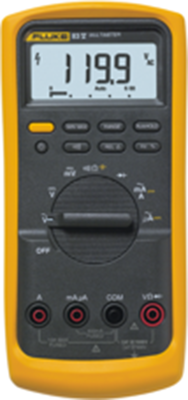

Digital/analog multimeters, type Fluke 83-V.
With large display, analog bar graph and two-step background lighting, auto-ranging and manual range selection, relative value mode, MIN/MAX/AVG recording, Min/Max Alert, Touch Hold, acoustic continuity check, diode test and sampling rate, warning of faulty connection, Auto-Off; DC voltage: up to 1000 V. AC voltage: up to 1000 V. DC and AC current: up to 10 A. Resistance: 50 Mohm. Conductance: 60 nS. Capacitance: up to 9999 µF. Frequency: up to 200 kHz. Bandwidth: 5.0 kHz. Display: 6000 digits. Supplied with 9.0 V battery, test leads and alligator clips. Further details are described in the manufacturer catalog, available for immediate delivery under order no. 30 T 380.
Type: Fluke 83-V, digital multimeter
| Anzeige Digits | 60000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | No | |
| Kapazitätsbereich | 10 pF bis 9,999 mF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 50 MΩ | |
| Spannungsmessbereich (AC) | 1000 V | |
| Spannungsmessbereich (DC) | 1000 V | |
| Überspannungskategorie | CAT III 1000 V, CAT IV 600 V |
| Ursprungsland | US |
| Zolltarifnummer | 90303200 |
| RoHS konform | not_relevant |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
