700LTP-1 | Fluke
Low pressure pump, underpressure to -13 psi (-0.90 bar)/overpressure to 100 psi (6.9 bar) for pressure modules 700 series/pressure calibrators 717 series, 700LTP-1
Order No.: 27K0355
EAN: 0095969397704
MPN:
700LTP-1
2811763
Unit Price (€ / pc.)
1,706.46 € *
Available: 0 pcs.
Leadtime: On Request **
Low pressure pump, 2811763, Fluke

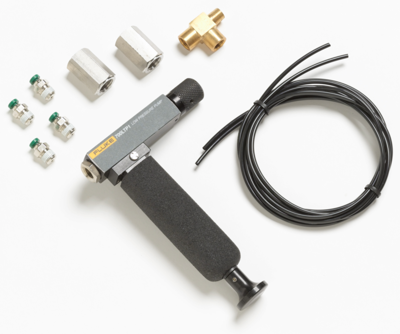

Fluke 700LTP-1 is a portable pressure pump designed to provide either negative pressure up to -13 psi/-0.90 bar or positive pressure up to 100 psi/ 6.9 bar. The Fluke 700LTP-1 model has two pressure ports with quick connectors. The ends of the test hoses have 1/4" female NPT threads that can be adapted with BSP/ISO adapters.
Features
- Pump can be easily cleaned without disassembly.
- Adjustable pressure relief valve with slow pressure release capability. Allows slow and controlled release of pressure.
- Quick connectors, one for the reference port to connect to a Fluke 700 Series pressure module and one to connect to a DUT.
Technical specifications
| Version | underpressure to -13 psi (-0.90 bar)/overpressure to 100 psi (6.9 bar) | |
| Suitable for | pressure modules 700 series/pressure calibrators 717 series | |
| Accessory Type | Low pressure pump |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 84142080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
