E-KM3026 | Frolyt

Electrolytic capacitor, 22 µF, 63 V (DC), -10/+50 %, radial, pitch 5 mm, Ø 8.7 mm, E-KM3026

Order No.: 12D505
EAN: 4099879869470
MPN:
E-KM3026
E-KM3026 22/63 8,7X12,7
Series: EKM
Frolyt

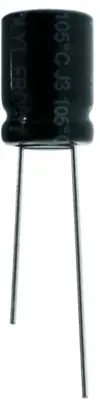

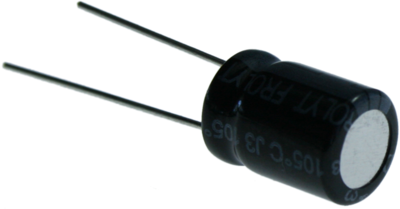

E-KM3026 Frolyt Electrolytic Capacitors Image 1
E-KM3026 Frolyt Electrolytic Capacitors Image 2
Image may differ
Print
Key Specification:
Version polar
Capacity 22 µF
Rated voltage (DC) 63 V
Tolerance -10/+50 %
Show 7 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.2019 € *
Available: 2,653 pcs.
Leadtime: On Request **
Total Price:
1.20 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2019 €
10 pcs.
0.7497 €
50 pcs.
0.6664 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Electrolytic capacitor, insulated aluminum can, type Frolyt EKM.

Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1

Rated voltage 63 VDC.
Technical specifications
Version polar
Design radial
diameter 8.7 mm
ESR (Equivalent Series Resistance) 5.8 Ω
Capacity 22 µF
Length 12.7 mm
max. operating temperature 105 °C
min. operating temperature -40 °C
Rated voltage (DC) 63 V
Grid 5 mm
Tolerance -10/+50 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85322200
Original Packaging Carton with 600 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
