E-KM3158 | Frolyt
Electrolytic capacitor, 47 µF, 50 V (DC), -10/+50 %, radial, pitch 5 mm, Ø 8.7 mm, E-KM3158
Unit Price (€ / pc.)
0.7497 € *
Available: 2,620 pcs.
Leadtime: On Request **
Total Price:
7.50 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7497 €
50 pcs.
0.6664 €
*incl. VAT plus shipping costs
**Subject to prior sale

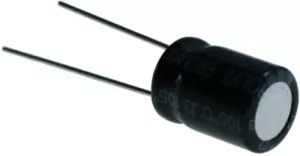

Radial aluminium electrolyte capacitor, E-KM3158, Frolyt
Aluminum electrolytic capacitor
Features
- Low-voltage-electrolytic capacitor
- Insulated/Non polarized
- Switching-resistant
- Service life 1000...1500 h/+105 °C
Technical specifications
| Version | polar | |
| Design | radial | |
| diameter | 8.7 mm | |
| ESR (Equivalent Series Resistance) | 3.39 Ω | |
| Capacity | 47 µF | |
| Length | 12.7 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 50 V | |
| Grid | 5 mm | |
| Tolerance | -10/+50 % |
Download
Logistics
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
