E-KM3803 | Frolyt

Electrolytic capacitor, 470 µF, 40 V (DC), -10/+50 %, radial, pitch 5 mm, Ø 12.5 mm, E-KM3803

Order No.: 12D467
EAN: 4099879868619
MPN:
E-KM3803
E-KM3803 470/40 12,5X25,0
Series: EKM
Frolyt

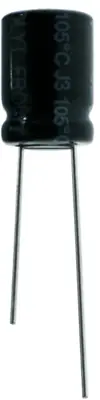

E-KM3803 Frolyt Electrolytic Capacitors Image 1

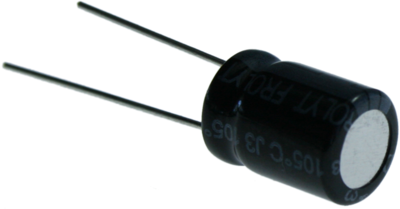

E-KM3803 Frolyt Electrolytic Capacitors Image 2
Image may differ
Print
Key Specification:
Version polar
Capacity 470 µF
Rated voltage (DC) 40 V
Tolerance -10/+50 %
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.9040 € *
Available: 821 pcs.
Leadtime: On Request **
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9040 €
10 pcs.
1.1900 €
50 pcs.
1.0472 €
250 pcs.
0.9044 €
1000 pcs.
0.7973 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Electrolytic capacitor, insulated aluminum can, type Frolyt EKM.

Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1

Rated voltage 40 VDC.
Technical specifications
Version polar
Design radial
diameter 12.5 mm
ESR (Equivalent Series Resistance) 410 mΩ
Capacity 470 µF
Length 25 mm
max. operating temperature 105 °C
min. operating temperature -40 °C
Rated voltage (DC) 40 V
Grid 5 mm
Tolerance -10/+50 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85322200
Original Packaging Carton with 2,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
