E-KM3816 | Frolyt

Electrolytic capacitor, 1000 µF, 40 V (DC), -10/+50 %, radial, pitch 7.5 mm, Ø 16.5 mm, E-KM3816

Order No.: 12D470
EAN: 4099879868626
MPN:
E-KM3816
E-KM3816 1000/40 16,5X30,0
Series: EKM
Frolyt

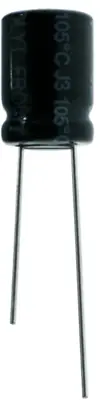

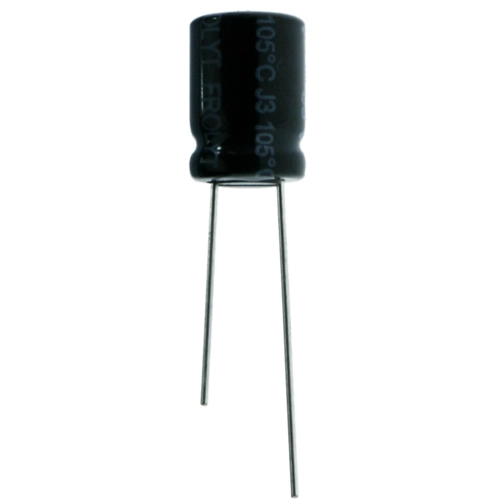

E-KM3816 Frolyt Electrolytic Capacitors Image 1

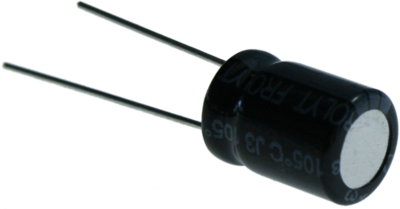

E-KM3816 Frolyt Electrolytic Capacitors Image 2
Image may differ
Print
Key Specification:
Version polar
Capacity 1000 µF
Rated voltage (DC) 40 V
Tolerance -10/+50 %
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.6299 € *
Available: 725 pcs.
Leadtime: On Request **
Total Price:
2.63 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6299 €
10 pcs.
1.6422 €
50 pcs.
1.4518 €
250 pcs.
1.2495 €
1000 pcs.
1.0948 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Electrolytic capacitor, insulated aluminum can, type Frolyt EKM.

Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1

Rated voltage 40 VDC.
Technical specifications
Version polar
Design radial
diameter 16.5 mm
ESR (Equivalent Series Resistance) 190 mΩ
Capacity 1000 µF
Length 30 mm
max. operating temperature 105 °C
min. operating temperature -40 °C
Rated voltage (DC) 40 V
Grid 7.5 mm
Tolerance -10/+50 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85322200
Original Packaging Carton with 1,800 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
